FSM-A-002 air quality monitor module

Brand: No brand

Model Number: FSM-A-002

The FSM-A-002 air quality monitor mudele is composed of Figaro Gas Sensor TGS2600 and a MCU on a PCB.According to air quality,it can output 1)clean air 2)Low pollution 3)Medium pollution 4) High pollution. LED board can display the correspo...

COM5042—Evaluation module for TGS5042 (without sensor)

Brand: No brand

Model Number: COM5042

...

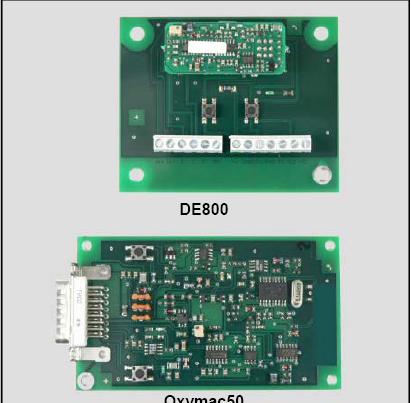

Oxygen Sensor Interface Board DE800 Oxymac50

Brand: No brand

Model Number: DE800 Oxymac50

Oxygen Sensor Interface Board DE800 Oxymac50 Features： 1) Interface circuit boards for all SST oxygen sensors 2) Oxygen partial pressure range 1 to 250mbar (0 to 25% oxygen) or 1 to 1000mbar (0 to 100% oxygen) in normal atmosphere 3) Functi...

Methane gas sensor module FSM-T-01

Brand: FIGARO

Model Number: FSM-T-01

FSM-T-01 Pre-calibrated Module for Methane Gas1. Brief Introduction FSM-T-01 is a pre-calibrated module for methane gas alarm which applies TGS2611 sensor together with optimized classic circuit measuring methane gas concentration. The modu...

Combustible gas sensor TGS813

Brand: FIGARO

Model Number: TGS813

Combustible gas sensor TGS813 Parameter of gas sensor TGS813: Detection range ; 500-10000ppm Circuit voitage : 5.0±0.2VDC/AC Heater current : 180mA Features of gas sensor TGS813: High sensitivity to combustible gases High sensitivity to met...

Air Contaminants sensor TGS2600

Brand: FIGARO

Model Number: TGS2600

Air Contaminants sensor TGS2600 --- Gas Sensor for detection of Air Contaminants Descriptions of Air Contaminants sensor TGS2600 low power consumption, High sensitivity to gaseous air contaminants, Long life and low cost, Uses simple electr...

Carbon Monoxide sensor TGS 2442

Brand: FIGARO

Model Number: TGS2442

Carbon Monoxide sensor TGS 2442 Description: TGS 2442 displays good selectivity to carbon monoxide, making it ideal for CO monitors. In the presence of CO, the sensor Specifications: 1) Target gases : Carbon monoxide 2) range：30 ~ 1000 ppm ...

Air contaminants sensor TGS2602

Brand: FIGARO

Model Number: TGS2602

Air contaminants sensor TGS2602 Features of air contaminants sensor TGS2602: 1) Standard package : TO-5 metal can 2) Detection range ; 1~ 30 ppm ofEtOH 3) Circuit voitage : 5.0VDC±0.2VDC 4) target gas: air contaminants 5) High sensitivity t...

Combustible Gases sensor TGS816

Brand: FIGARO

Model Number: TGS816

Combustible Gases sensor TGS816 Description: The TGS 816 is not only sensitive to a wide range of gases, it also has a ceramic base which can withstand severe environments up to 200°C. It has high sensitivity to methane, propane, and butane...

Carbon Monoxide Sensor TGS 203

Brand: FIGARO

Model Number: TGS203

Carbon Monoxide Sensor TGS 203 Specifications: 1) range：50-1,000ppm 2) Change Ratio of Sensor Resistance >1.0 3) Circuit Voltage：24V(AC/DC) 4) Heater Voltage：high 0.8V±0.08V(60s)(AC/DC) ; low 0.25V±0.025V(90s)(AC/DC) 5) Load Resistance: 4KW...

Methane sensor TGS2611

Brand: FIGARO

Model Number: TGS2611

Methane sensor TGS2611 - for the detection of Methane Description: TGS2611 is a semiconductor type gas sensor which combines very high sensitivity to methane gas with low power consumption and long life. Due to miniaturization of its sensin...

Alcohol sensor TGS2620

Brand: FIGARO

Model Number: TGS2620

Alcohol sensor TGS2620 Description: The TGS 2620 has high sensitivity to the vapors of organic solvents as well as other volatile vapors. It also has sensitivity to a variety of combustible gases such as carbon monoxide, making it a good ge...

Methane and LP Gas sensor TGS2612

Brand: FIGARO

Model Number: TGS2612

Methane and LP Gas sensor TGS2612 Description: The TGS 2612 has high sensitivity to methane, propane and butane, making it ideal for LNG and LPG monitoring. Due to its low sensitivity to alcohol vapors (a typical interference gas in the res...

pre-calibrated module for LP Gas LPM2610

Brand: FIGARO

Model Number: LPM2610

pre-calibrated module for LP Gas LPM2610 Description: The LPM2610 is a pre-calibrated module for LP gas alarms which is precisely calibrated in Figaro's humidity and temperature controlled facility. Features: 1) Factory calibrated 2) Temper...

Pre-calibrated module for Methane NGM2611

Brand: FIGARO

Model Number: NGM2611

Pre-calibrated module for Methane NGM2611 Description: The NGM2611 is a pre-calibrated module for natural gas alarms which is precisely calibrated in Figaro's humidity and temperature controlled facility. Specifications: 1) heater voltage：5...

Diesel Engine Exhaust Gas sensor TGS 2106

Brand: FIGARO

Model Number: TGS2106

Diesel Engine Exhaust Gas sensor TGS 2106 Description: The TGS 2106 has high sensitivity and quick response to exhaust gases emitted by diesel-fueled engines. As a result of this feature, TGS2106 is an ideal sensor for application in automa...

Gasoline Engine Exhaust Gas sensor TGS 2104

Brand: FIGARO

Model Number: TGS2104

Gasoline Engine Exhaust Gas sensor TGS 2104 Description: The TGS 2104 has high sensitivity and quick response to exhaust gases emitted by gasoline-fueled engines. As a result of this feature, TGS2104 is an ideal sensor for application in au...

Organic solvent vapors (alcohol) sensor TGS822

Brand: FIGARO

Model Number: TGS822

Organic solvent vapors (alcohol) sensor TGS822 Description: The TGS 822 has high sensitivity to the vapors of organic solvents as well as other volatile vapors. It also has sensitivity to a variety of combustible gases such as carbon monoxi...

Combustible gases sensor TGS2610

Brand: FIGARO

Model Number: TGS2610

Combustible gases sensor TGS2610 Description of gas sensor TGS2610: TGS2610-D00 uses filter material in its housing which eliminates the influence of interference gases such as alcohol, resulting in highly selective response to LP gas. This...

Carbon monoxide CO module COM2442

Brand: FIGARO

Model Number: COM2442

Carbon monoxide CO module COM2442 ---- Evaluation Module for TGS2442 Description: This module has been pre-calibrated at Figaro's factory. The module can also function as a CO detector by monitoring/using the LED, the Buzzer, the external o...
